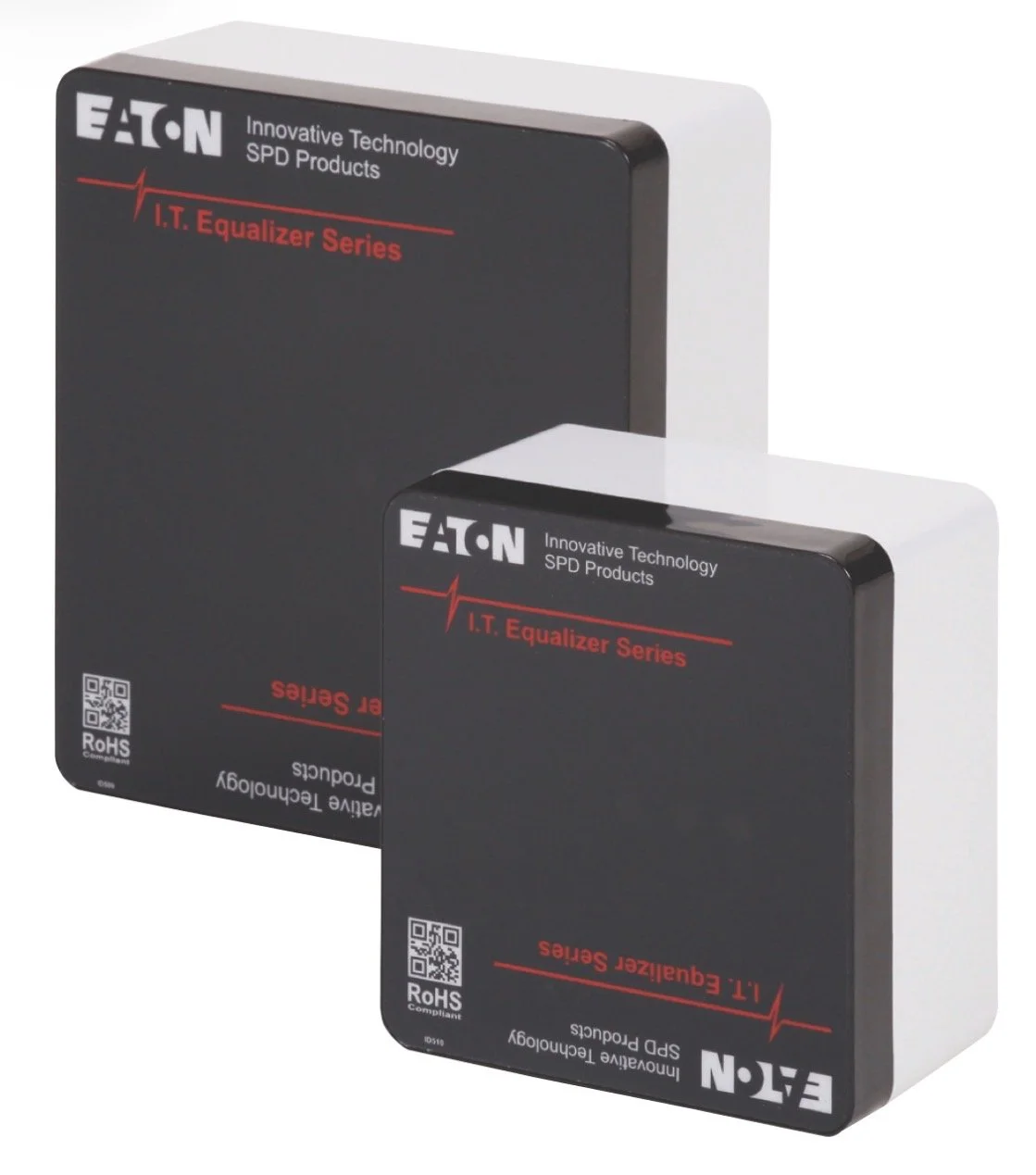

Eaton EQ1001S101-7 Innovative Technology Equalizer 2 Surge Protective Device
The EQ1001S101-7 (also known as EQ1001S101) is an Eaton Innovative Technology Equalizer 2 surge protective device (SPD) listed to UL 1449 4th Edition. Part of Eaton’s System Shield protection solution, the Equalizer 2 is available in all common voltages and configurations with peak surge current capacity ratings from 50 through 200 kA per phase. The compact design and NEMA 4X enclosure allow installation in a variety of commercial and industrial environments, including service entrances, distribution panelboards, and point-of-use applications. Features thermally protected MOV technology, tri-colored LED protection status indicators, 200 kA SCCR, and a 5-year warranty extendable to 10 years.
Product Specifications
-
EQ1001S101-7 (also written as EQ1001S101)
-
Eaton Innovative Technology Equalizer 2 (I.T. Equalizer Series)
-
50 through 200 kA per phase peak surge current capacity ratings
-
UL 1449 4th Edition Type 1 and Type 2 (cULus listed). UL 1283 7th Edition. CSA Type 1 and Type 2. 200 kA short-circuit current rating (SCCR). Can be used for UL 96A and NFPA 780 compliance.
-
Corrosion-resistant NEMA 4X enclosure with mounting feet. Factory prewired with 35 inches of 10 AWG wire. Compact design suitable for service entrances, distribution panelboards, and point-of-use applications.
-
In stock through FarWest Systems, exclusive California and Nevada distributor of Eaton Innovative Technology products. 5-year warranty extendable to 10 years with product registration. No user-serviceable parts.
